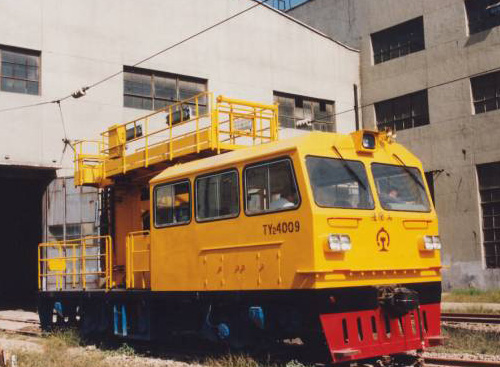

The work car is used for construction, inspection and maintains the contact wire on electrified railways. It can also be used as a hauler.
The car equipped hydraulic-mechanical transmission box which features smooth starting and quick acceleration. The max. tractive effort is 67kN so that it can hauling 40t at the speed of 65km/h.
|
Track gauge |
1435 mm |
|
Wheel diameter |
915 mm |
|
Weight in work status |
23 t |
|
Structure speed |
85 km/h |
|
Transmission mode |
Hydraulic and mechanical |
|
Axle arrangement |
B |
|
Min .Radius of curvature negotiated |
100 m |
|
Diesel engine power |
175 kw |
|
Platform dimension (length ¡Á width) |
5.5¡Á1.75 m |
|
Max .Height of elevation of platform |
6800 m (over the top of track) |
|
Loading capacity of platform(in center) |
1000 kg |
|
Slewing range of platform |
¡À120¡ã |
